Pan Depth: 7-1/2”
Pan Capacity: 6 Quarts (5.7 Liters)
System Capacity: 7 Quarts (6.6Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)
Dimensions: 8" Long sump front to rear, 12" Wide (3" Kick-out to the Right, straight down on driver side LH)

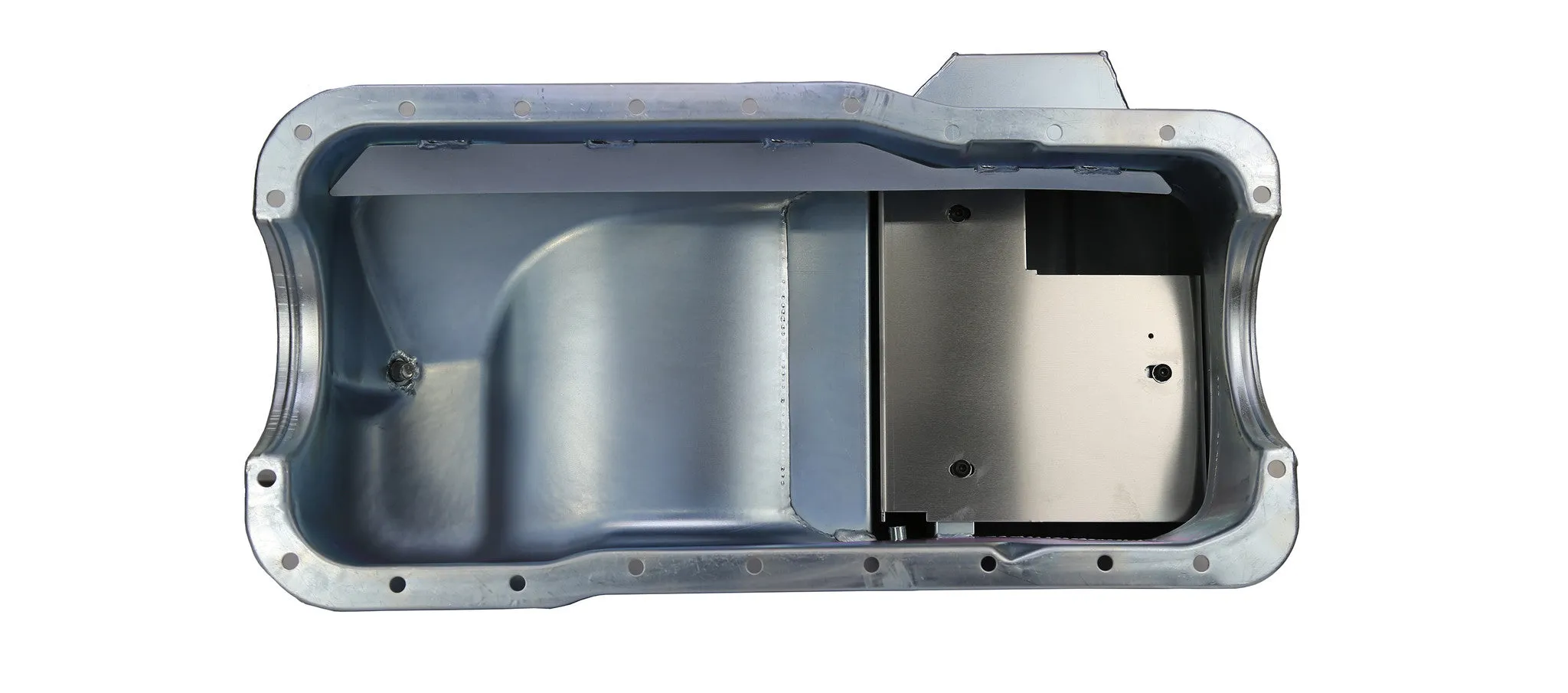

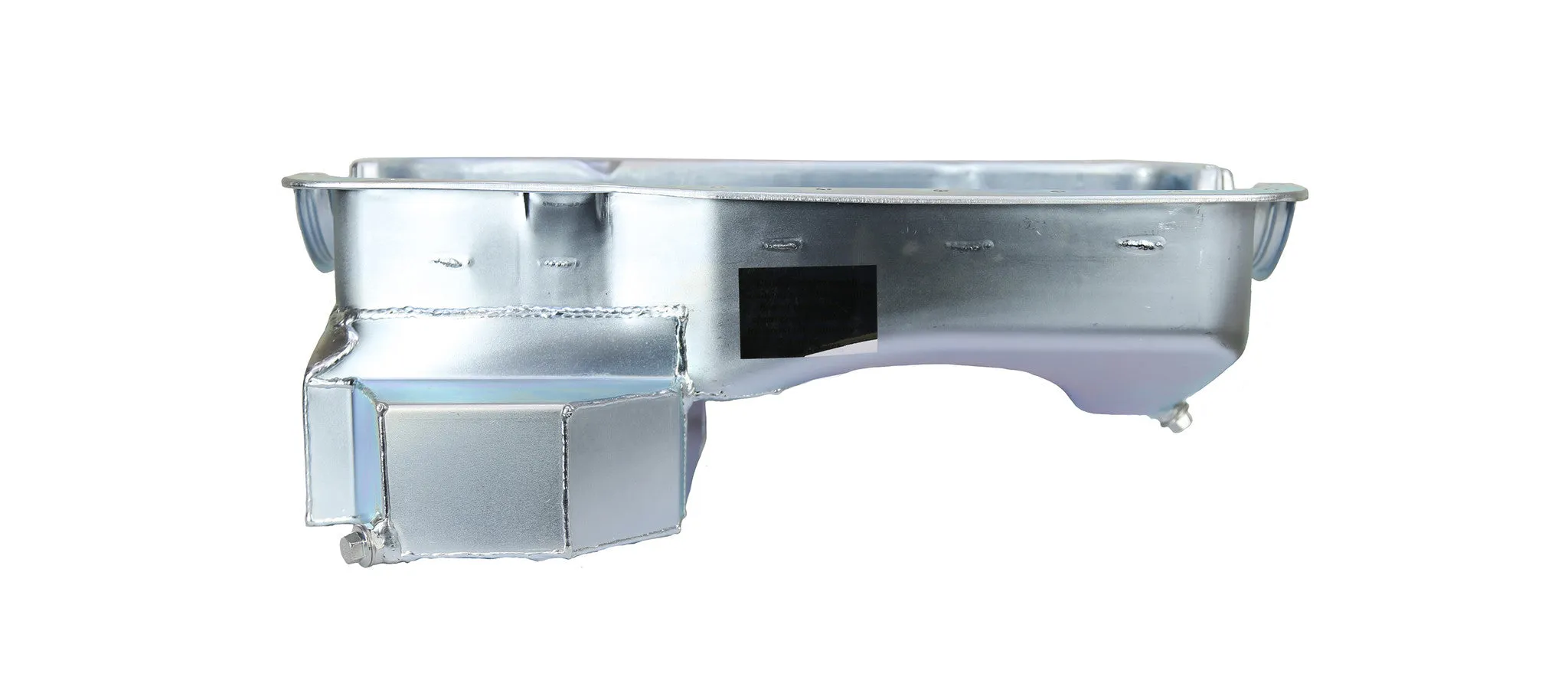

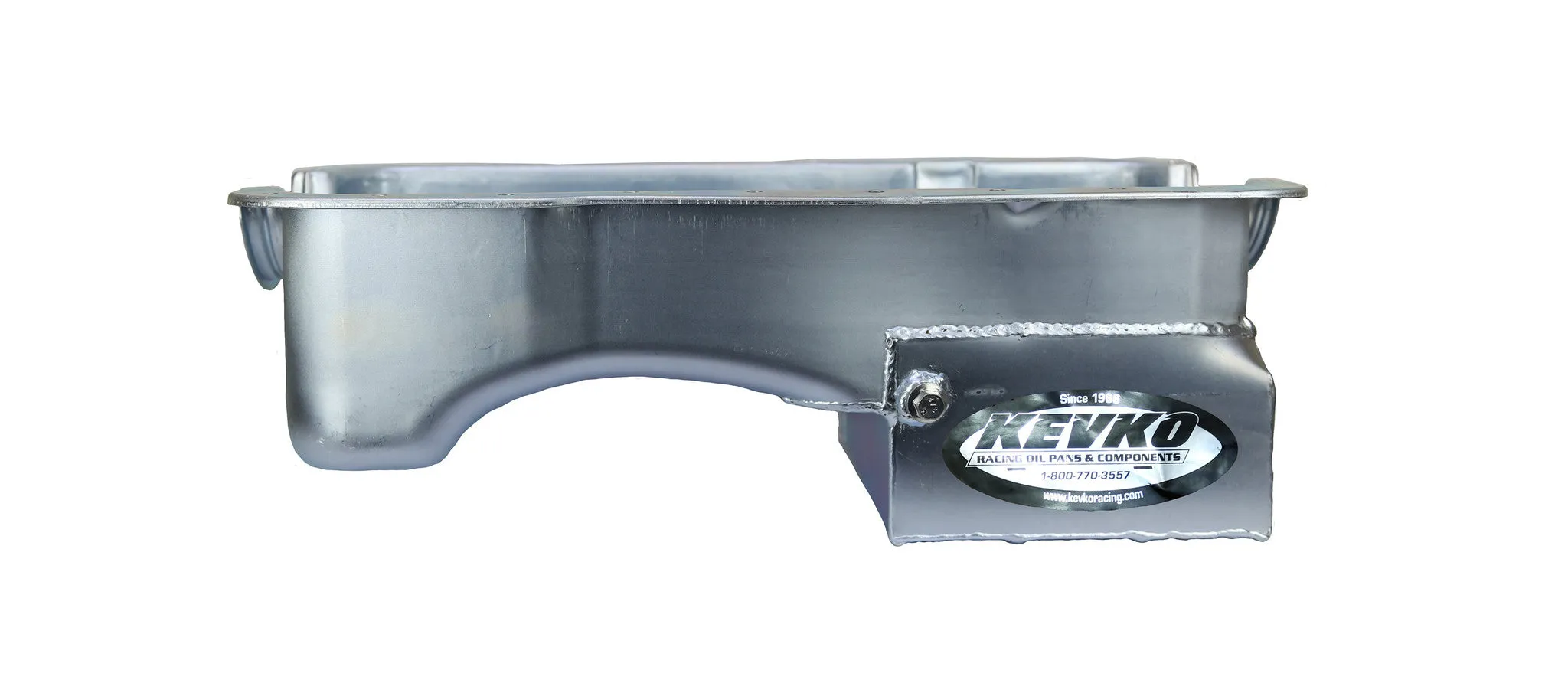

Description: Circle Track Oil pan Designed to fit 1979-Up Mustang, 1981-1988 Thunderbird & Cougar, 1976 Capri and other Ford rear sump applications. This pan features 3 Trap doors, Baffles and Diverters, Crank Scraper and removable aluminum tray to reduce oil slosh. Inspection Fitting is standard in this pan.
This Pan Fits SHP Blocks with 2 Bolt Rear Mains
351W Accessories
| Part Number | Description | |
| 351W Pickup Tube, works with Standard and High Volume Pumps | ||
| 351W OEM Style Ford Pickup Tube Stud | ||
| Standard Volume Pump | ||
| High Volume Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| Fel-Pro 1-Piece Gasket |
302 Accessories
| Part Number | Description | |
| 302 Pickup Tube-Works with Standard and High Volume Pumps | ||
| 302 Pickup Tube Support Stud | ||
| Standard Volume Oil Pump | ||
| High Volume Oil Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| 221-302 Ford 1-Piece Gasket |
Miscellaneous Accessories
| Part Number | Description | |
| Standard Kevko 1/2-20 Universal Dipstick | ||
| Lo-Kar Polished 1/2-20 Locking Top Universal Dipstick | ||
| Kevko Polished Stainless Steel 1/2-20 Universal Dipstick | ||
| Standard Drain Plug | ||
| Magnetic Drain Plug | ||
| Ford Motor Mounts | ||
| Lift Plate |
