Pan Depth: 7-1/2”
Pan Capacity: 9 Quarts (8.5 Liters)
System Capacity: 10 Quarts (9.5 Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

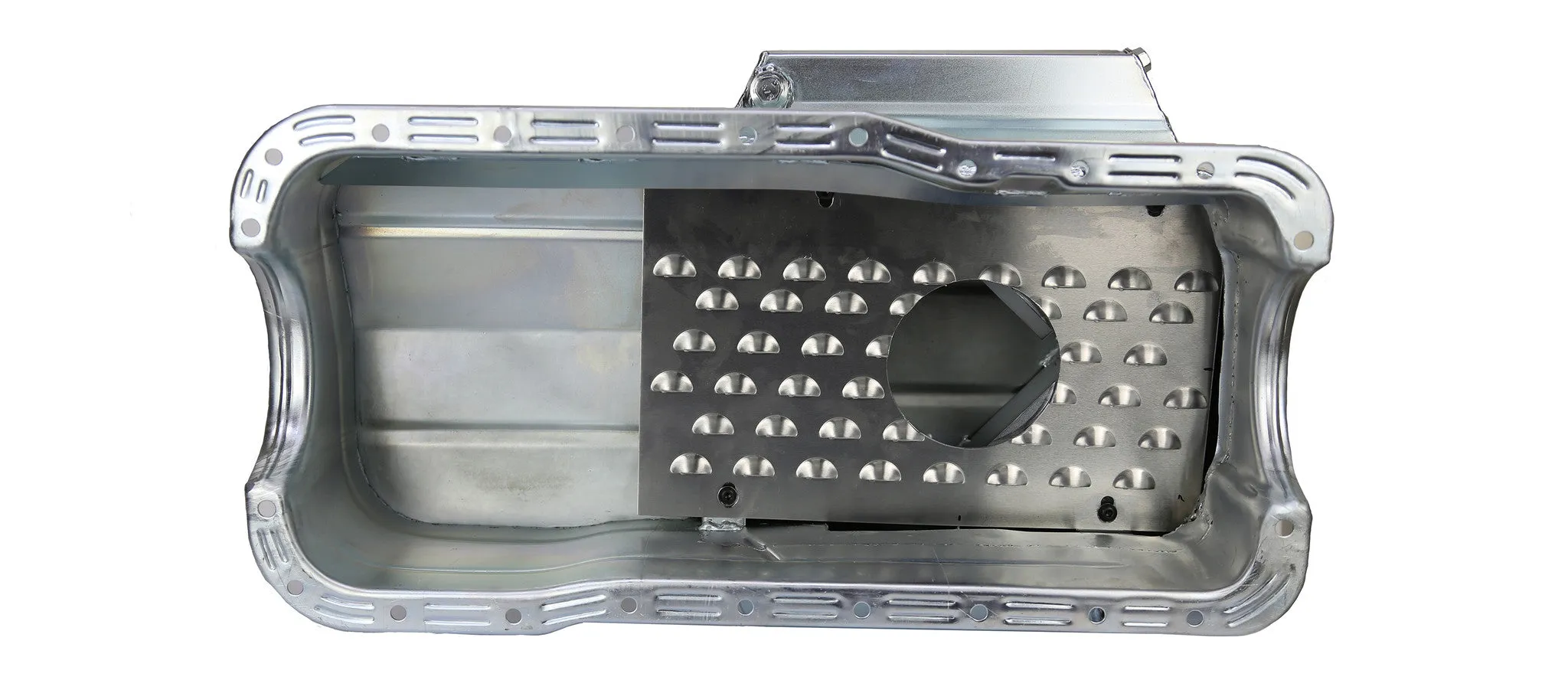

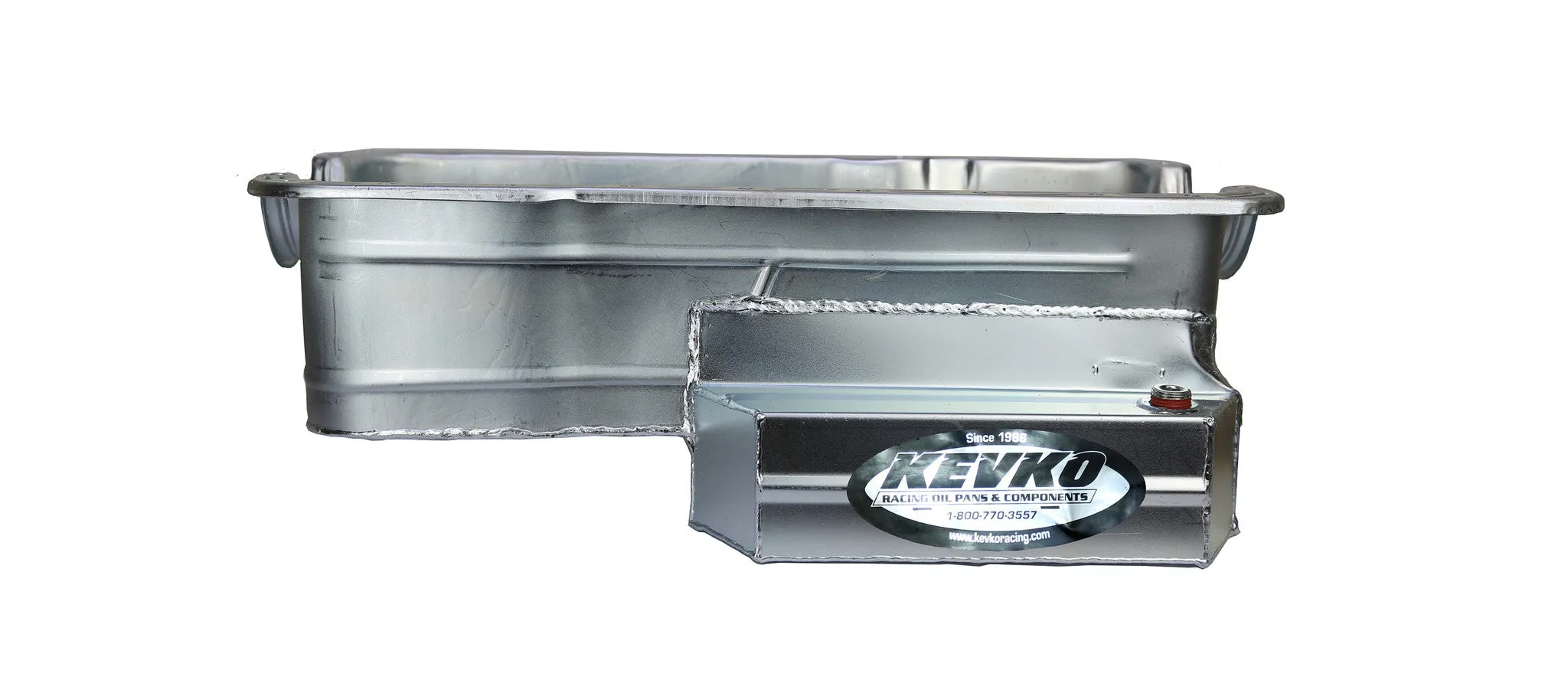

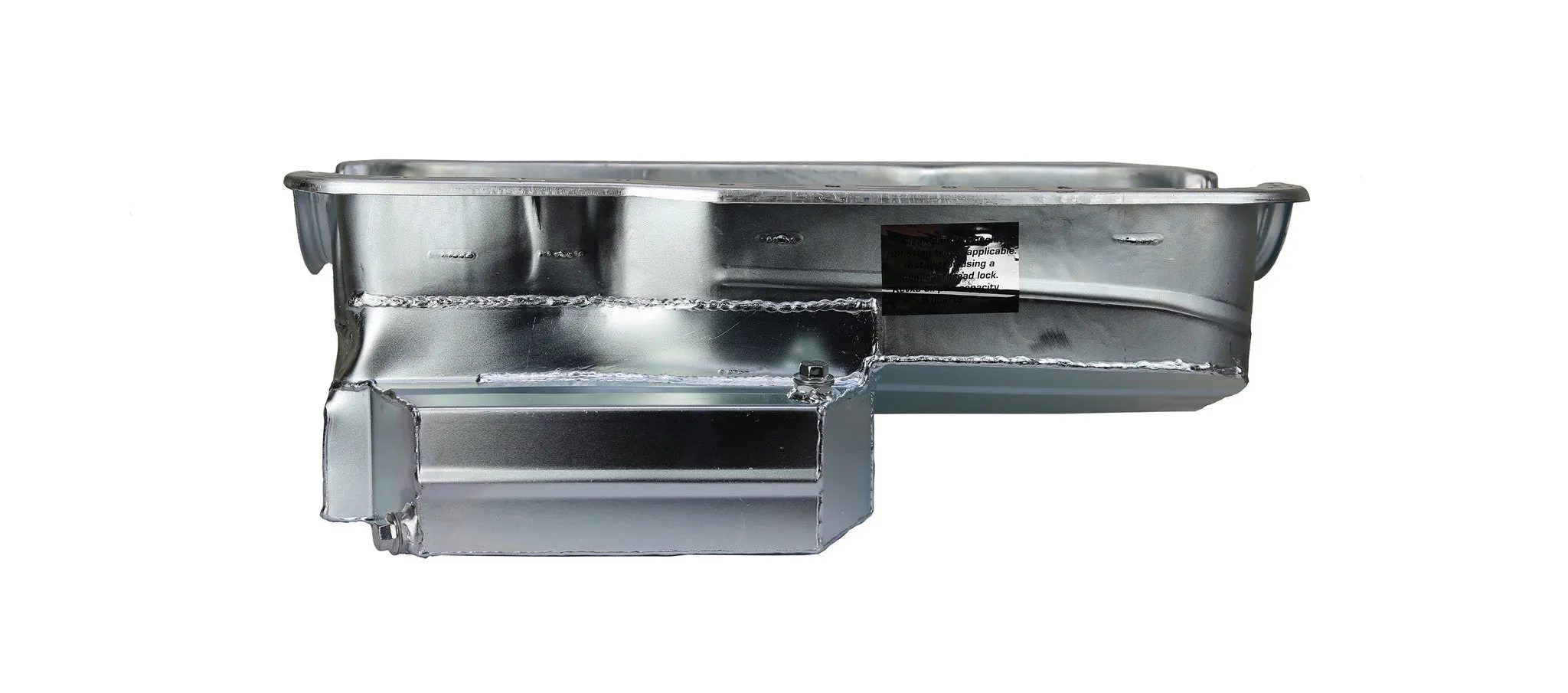

Description: This pan is kicked out on both sides. The sump measures 12" long, 14" wide, 7 1/2" deep. There are 5 gates, a diverter, full windage tray and a crank scraper. Oil temp fitting, oil level plug, zinc plated. The front of the 351W pan is 6 1/2" deep, and the front of the 302 pan is 5 1/2" deep.
*Oil pans built for the SHP block are built to order and will be shipped raw, with no finish. Zinc Silver Plating is available - Call (800) 770-3557 for details.*s.*
351W Accessories
| Part Number | Description | |
| 351W Pickup Tube, works with Standard and High Volume Pumps | ||
| 351W OEM Style Ford Pickup Tube Stud | ||
| Standard Volume Pump | ||
| High Volume Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| Fel-Pro 1-Piece Gasket |
302 Accessories
| Part Number | Description | |
| 302 Pickup Tube-Works with Standard and High Volume Pumps | ||
| 302 Pickup Tube Support Stud | ||
| Standard Volume Oil Pump | ||
| High Volume Oil Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| 221-302 Ford 1-Piece Gasket |
Miscellaneous Accessories
| Part Number | Description | |
| Standard Kevko 1/2-20 Universal Dipstick | ||
| Lo-Kar Polished 1/2-20 Locking Top Universal Dipstick | ||
| Kevko Polished Stainless Steel 1/2-20 Universal Dipstick | ||
| Standard Drain Plug | ||
| Magnetic Drain Plug | ||
| Ford Motor Mounts | ||
| Lift Plate |
