• Size Discharge : 3″ x 3″
• Power : 3HP / Three Phase
• Flow Rate : 100 ~ 900 L/min
• Head : 12.5 ~ 9 meters
• Manometric Suction Lift Max. : 9 meters
• Liquid Temperature Max. : 80°C
• Environment Temperature Max. : 40°C
• Dimensions (L x W x H) : 405mm x 237mm x 312mm
• Weight : 28.8 kg

• Pump Body: cast iron
• Motor Housing: aluminum
• Shaft: 45# steel/stainless steel
• Impeller: brass
• Motor: closed, externally ventilated
• Insulation Class: B/F
• Protection Class: IP44/IP54

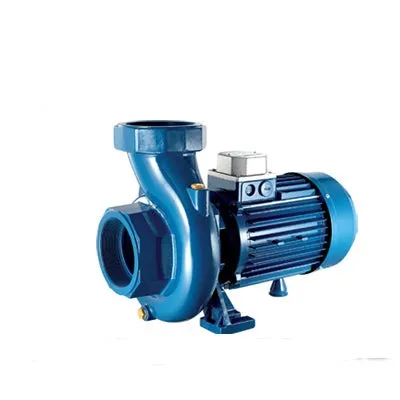

The Pentax CST300/3 Centrifugal Water Pump is a high-performance and versatile pump designed to efficiently move water for various applications. With a robust 3HP motor and a 3x3-inch inlet and outlet, this pump is well-suited for a wide range of water transfer needs. The CST300/3 pump is equipped with a reliable 3HP motor, ensuring it can handle water transfer tasks effectively and efficiently.
