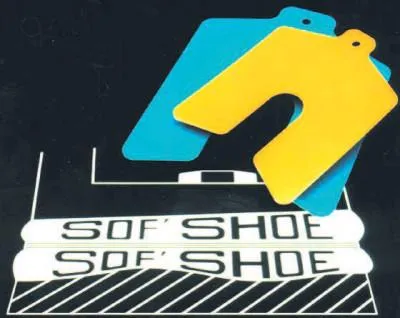

• Blue Sof Shoe shims are .020 in. thick, compress to .0175 in. and absorb up to .010 in. of angularity
• Can be used on motors, pumps, generators, turbines and other plant machinery in minutes
• Made from a proprietary elastomer which has a unique cold flow and set characteristic to fill irregular gaps
• Sof Shoe Shims cures angular soft foot and extends bearing and motor life
• Yellow Sof Shoe shims are .045 in. thick, compress to .040 in. and absorb up to .020 of angularity
• Pack of 10 PKG
• Manufacturer part number: 49140
• UPC Code: 698158491407

Specifications:

• Color = Yellow
• Length [Nom] = 5 in
• Material = Elastomer
• Quantity = 10 per package
• Thickness Tolerance ( ) [Max] = 0.05
• Thickness Tolerance (-) [Min] = 0.05
• Thickness [Nom] = 0.045 in
• Type = Shim-Alignment
• Width [Nom] = 5 in
• Wt. = 0.43 lb
• This is a normal stocking item.
